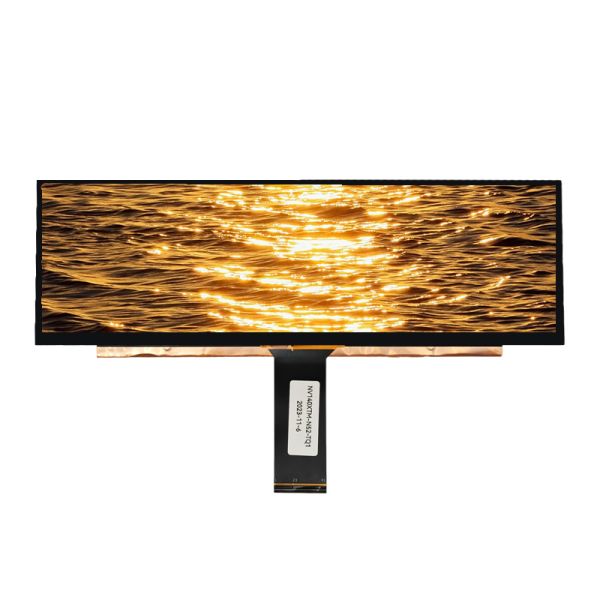

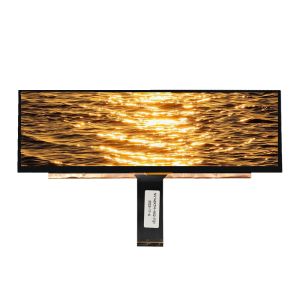

14 Inch Bar Type LCD Display 3840x1100 IPS LCD Screen BOE NV140XTM-N52 EDP Optional Touch Screen
The 14 inch bar-type LCD display adopts the professional IPS panel of BOE model NV140XTM-N52, equipped with an EDP interface, specifically engineered for scenario-specific requirements. Featuring an ultra-wide resolution of 3840×1100, it delivers sharp image quality and wide viewing angles, with an optional touchscreen to further enhance operational efficiency. Its unique bar-shaped design and stable performance make it the preferred solution for professional application scenarios.
With a focus on practical adaptability, this product is perfectly suited for industrial control panels, retail advertising players, vehicle-mounted displays, smart monitoring devices, and other scenarios. It meets users' professional needs through customized design.
Key Features
- 14 Inch Bar Type LCD Display
Designed for space-specialized devices like retail kiosks and vehicle-mounted terminals. Its unique bar shape optimizes horizontal display space, ensuring clear information delivery without occupying excessive vertical area.
Boasting 3840×1100 ultra-wide resolution and IPS technology, it delivers sharp details and consistent colors from all viewing angles, ideal for advertising, monitoring, and industrial display scenarios.
Optional high-sensitivity capacitive touch function enables smooth and accurate operation, providing intuitive human-machine interaction for scenarios like self-service terminals and smart control panels.
Applications of 14 Inch Bar Type LCD Display Panel
- Retail advertising and self-service terminals
- Industrial control and monitoring panels
- Vehicle-mounted information displays
- Smart transportation and public information screens
- Hotel and catering service control terminals
Product Specification
| Item Number | NV140XTM-N52 |
| Screen Size | 14 Inch |
| Resolution | 3840x1100 |
| Brightness | 300 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | 2 Lane EDP, 30pins Connector |
| Active Aera | 344.2176(W)x98.604(H) mm |
| Outline Dimension | 350.52(W)x108.75(H)x2.5 (T) mm |
| Lifetime | 15,000 Hrs(Min.) |
| Surface treatment | HC+APF |
| Surface hardness | 3H |
| Operating Temperature | 0℃~+50℃ |
| Storage Temperature | -20℃~+60℃ |
| Touch Panel | Optional Touch Panel |
Product Drawing
Why Choose ZhanHui Bar Type TFT LCD Screen?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
FAQ
1. Is the NV140XTM-N52 suitable for industrial applications?
Yes. It supports long-term operation, IPS stability, 3H surface hardness, and 0°C ~ +50°C operating temperature.
2. Can you provide a touch screen version?
Yes. A PCAP touch panel is available upon request.
3. What interface does the display use?
The module uses 2-Lane eDP 30-pin interface.
4. Do you support OEM/ODM customization?
Yes. We offer custom brightness, touch integration, cables, driver board solutions.
5. What is the typical lifetime of this module?
The backlight lifetime is 15,000 hours minimum.
6. Can you supply controller boards (HDMI/AD Board)?
Yes, HDMI/AD driver board kits can be provided according to customer needs.
