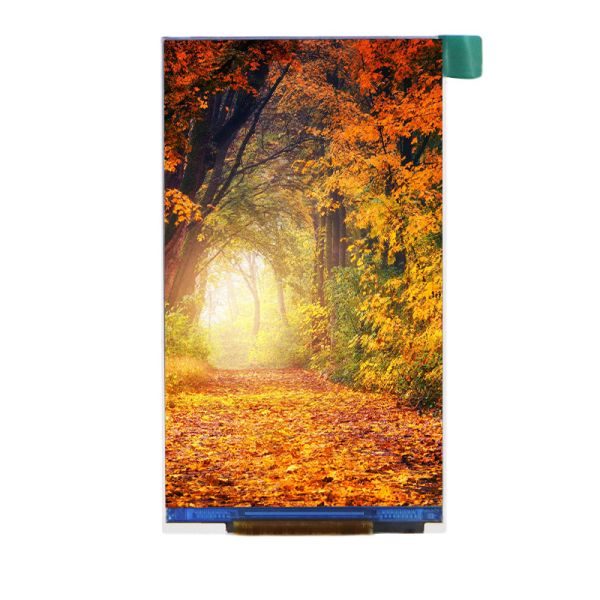

5.0 Inch 1000nits High Brightness TFT LCD Screen IPS ILI9881C IC 720x1280 Optional Touch Panel
The 5.0 inch high-brightness LCD display utilizes advanced IPS technology and an efficient driver IC to ensure clear visibility even in bright lighting conditions. With an HD+ resolution of 720×1280, it delivers detailed and sharp visuals, while the optional touch panel further enhances interactive convenience. Its compact design and high reliability ensure broad applicability.
This product emphasizes practicality and supports flexible integration. It is suitable for various scenarios such as mobile handheld terminals, industrial outdoor equipment, automotive displays, portable instruments, and high-brightness monitoring interfaces, meeting users' specialized needs with high adaptability.
Key Features
Designed for mobile and outdoor devices with stringent requirements for size and brightness. It maximizes the viewable area within a compact form factor, balancing portability with an excellent visual experience.
- 1000 nits High Brightness
Featuring a peak brightness of 1000 nits, this screen ensures exceptional readability under direct sunlight or other intense lighting conditions, making it perfect for outdoor and high-ambient-light applications.
The resolution provides crisp and fine image quality, meeting the high-definition requirements of industrial outdoor, automotive navigation, and other visual display scenarios.
Offers a highly responsive capacitive touch option, enabling direct and smooth human-machine interaction. It is suited for various applications requiring fast touch response.
Applications
- Outdoor portable devices and handheld terminals
- Industrial-grade outdoor HMI and control systems
- Automotive central control and navigation displays
- High-brightness security monitoring screens
- Specialized instrument and measurement device interfaces
Company's focus on the core
- Industrial-Grade TFT/OLED Displays (0.96" to 32")
- Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
- Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
- Touch Solutions: Resistive/Capacitive/Cover Glass
- TN/IPS Panels | Custom Backlight Systems
Product Specification
| item |
ZH050QHD001-01 |
| Screen Size |
5.0 Inch |
| Resolution |
720x1280 |
| Brightness |
1000 cd/m²(Typ.) |
| Interface |
RGB, 40pins Connector |
| Driver IC |
ILI9881C-05 |
| Display Mode |
IPS, Normally Black
|
| Active Aera |
62.1(W) x110.4(H) mm |
| Outline Dimension |
66.8(W) x121.3(H) x2.25(T) mm |
| Backlight |
12-CHIP WHITE LED ,60MA 24V |
| Operating Temperature |
-20℃~+70℃ |
| Storage Temperature |
-30℃~+80℃ |
| Touch Panel |
Optional Touch Panel |
This TFT LCD screen offers a robust and scalable solution for manufacturers, OEMs, and system integrators looking for reliable, high-brightness display modules.
Product Drawing
FAQ
Q1: What type of display is this?
A: It is a 5.0-inch TFT LCD screen using IPS (In-Plane Switching) technology with a Normally Black mode for better contrast and viewing angles.
Q2: Can this TFT LCD screen be used in outdoor environments?
A: Yes. With 1000 cd/m² brightness, it performs well in high ambient light and is suitable for outdoor or semi-outdoor applications.
Q3: What industries use this screen?
A: It’s widely used in industrial automation, handheld terminals, medical equipment, smart control panels, and other B2B embedded solutions.
Q4: Is the interface compatible with standard controllers?
A: Yes. It uses a standard 40-pin RGB interface, compatible with a variety of embedded platforms and development boards.
Q5: What kind of backlight does it use?
A: A 12-chip white LED backlight with 60mA @ 24V, delivering high brightness with efficient power usage.
Q6: Is touch functionality available?
A: This model supports optional touch integration upon request, depending on your project requirements.
Why Choose ZhanHui TFT LCD Screen?
- Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
- A powerful engineering support team offers a one-stop integrated solution
- Flexible and efficient customization capabilities, with rapid response to demands
- Strict quality control system (such as through IATF 16949, ISO 9001)
- Global logistics and localized service support
- Highly competitive cost-effectiveness
