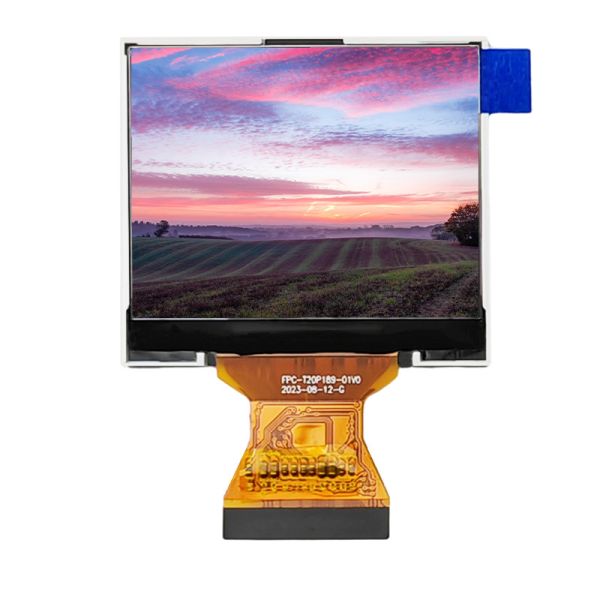

Square 2.0 Inch TN TFT LCD Screen 320x240 220nits Brightness LCD Module

Product Categories

Shenzhen Zhanhui Photoelectric Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Square 2.0 Inch TN TFT LCD Screen 320x240 220nits Brightness LCD Module

Name: Square 20 Inch TN TFT LCD Screen 320x240 220nits Brightness LCD Module
Brand: OEM/Customized
Price: 1 USD

Wholesale Square 2.0 Inch TN TFT LCD Screen 320x240 220nits Brightness LCD Module from china suppliers

Brand Name : OEM/Customized

Model Number : ZH020PEQVG001-01A

Certification : ROHS、ISO9001、CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500K pcs/ Month

Delivery Time : 7-15 working days

Packaging Details : Foam Cotton And Carton Boxes

Display Size : 2.0 Inch

Resolution : 320x240

Luminance : 220cd/㎡(Typ.)

Display Type : TN, Normally White

Driver IC : ILI9342C

Operating Temperature : -10 °C-60°C

Contact Now

Square 2.0 Inch TN TFT LCD Screen 320x240 220nits Brightness LCD Module

This 2.0 inch TN TFT LCD screen features a square design, delivering fundamental and reliable display performance. With a resolution of 320x240, it ensures sharp character and graphics rendering. A brightness of 220 nits guarantees clear visibility in standard indoor environments. Its modular construction facilitates easy integration, making it suitable for various basic display applications where cost and space are primary concerns.

The product boasts a compact form factor and universal interfaces, enabling rapid development and deployment. It serves as a practical display solution for portable devices, simple control panels, basic instrumentation, and similar applications.

Key Features

2.0 Inch Square TN TFT LCD Screen

Utilizes a standard square form factor with a small footprint, allowing for easy installation in space-constrained devices. The modular design significantly simplifies the integration and assembly process.

320x240 Resolution

Delivers clear QVGA-level display quality, effectively meeting the needs of basic information display such as menu interfaces, data readouts, and status indicators, offering high cost-effectiveness.

220 Nits Brightness

With a typical brightness of 220 nits, the screen ensures clear visibility under normal indoor lighting conditions, achieving a balance between power consumption and display performance.

Applications

Portable handheld devices and instruments
Industrial equipment status indicator panels
Consumer electronics accessory displays
Smart home control panels
Basic human-machine interface (HMI) systems

Company's focus on the core

Industrial-Grade TFT/OLED Displays (0.96" to 32")
Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
Touch Solutions: Resistive/Capacitive/Cover Glass
TN/IPS Panels | Custom Backlight Systems

Product Specification

item	ZH020PEQVG001-01A
Screen Size	2.0 Inch
Resolution	320x240
Brightness	220 cd/㎡ (Typ.) , 250cd/m²(Max.)
Interface	RGB, FPC 40pins Connector
Driver IC	ILI9342C
Display Mode	TN, Normally White
Active Aera	40.80(W)x30.60(H) mm
Outline Dimension	46.00(W) x 40.90(W)x 2.53(T) mm
Operating Temperature	-20℃~+70℃
Storage Temperature	-30℃~+80℃
Touch Panel	Optional Capacitive Touch Screen

Product Drawing

Square 2.0 Inch TN TFT LCD Screen 320x240 220nits Brightness LCD Module

Why Choose ZhanHui TFT LCD Screen?

Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
A powerful engineering support team offers a one-stop integrated solution
Flexible and efficient customization capabilities, with rapid response to demands
Strict quality control system (such as through IATF 16949, ISO 9001)
Global logistics and localized service support
Highly competitive cost-effectiveness
