12.1 Inch 1000 Nits High Brightness LCD IPS 1024×768 Industrial Display Optional Touch Panel
The Part number - ZH0121PH003-03A is 12.1 inch 1000 nits high brightness LCD module designed for industrial, embedded, and outdoor applications. Featuring IPS technology for wide viewing angles and stable color performance, this module delivers excellent visibility even under bright sunlight. Equipped with LVDS 20pins interface and optional touch panel, it is ideal for OEM and B2B industrial solutions.
Key Features
High Brightness Display: 1000 cd/m² typ., Sunlight Readable for Outdoor
IPS /Normally Black : Provides all viewing angles
Resolution: 1024×768
Interface: LVDS 20pins connector
Backlight: 48-chip white LED, 180 mA, 36V
Optional Touch Panel: Capacitive or resistive options available for interactive applications.
Wide Operating Range: -20°C to +70°C operation, -30°C to +80°C storage.
OEM Friendly: Supports customization for industrial projects.
Applications
Industrial HMI panels and control systems
Embedded systems and automation equipment
Outdoor digital signage and kiosks
Medical or measurement instruments
OEM / ODM projects requiring high brightness display
The 12.1 inch 1000 nits high brightness LCD ensure exceptional readability in sunlight or industrial lighting, making it ideal for professional applications.
Product Specification
| Item Number | ZH0121PH003-03A |
| Screen Size | 12.1 Inch TFT LCD |
| Resolution | 1024x768 |
| Brightness | 1000 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | LVDS, 20pins connector |
| Active Aera | 245.76(W) x184.32(H) mm |
| Outline Dimension | 260.5(W) x204.0(H) x 7.2(T) mm |
| Backlight | 48-Chip White LED, 180mA 36V |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Touch Panel |

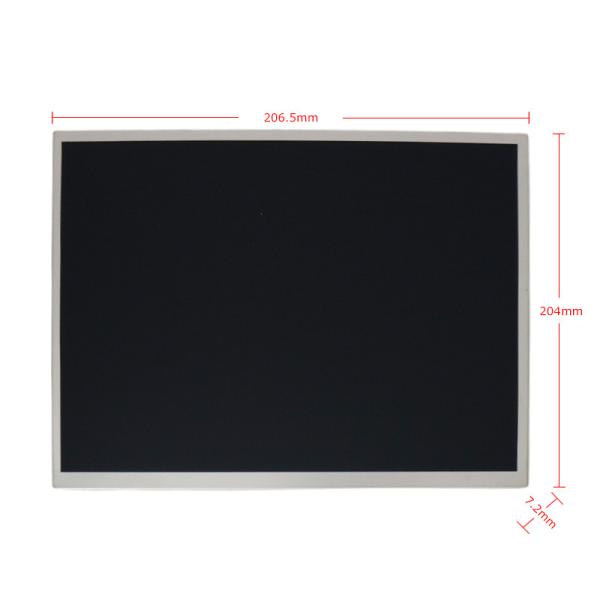

Product Drawing
Why Choose Zhanhui High Brightness LCD Display?
- Over 10 years of industrial LCD manufacturing experience
- OEM and ODM customization available (touch panel, interface, brightness)
- Strict quality control for long-term reliability
- Comprehensive technical support for integration and testing
FAQ
Q1: Is this 12.1 inch LCD readable in direct sunlight?
A: Yes, with 1000 nits high brightness, it is sunlight readable for outdoor and industrial applications.
Q2. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
Q3. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
Q4. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q5.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
Q6. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
Q7: Is OEM customization supported?
A: Yes, we support customization including touch panel, brightness, and interface adjustments.
Call To Action
- Download Datasheet – Access complete technical specifications for integration.
- Request Sample – Test this 12.1 inch 1000 nits high brightness LCD in your application.
- Contact Sales Support – For OEM and B2B project inquiries.
